Marcador

Venturi Nozzle-Differential Pressure RCD, 20-168L/min

Código: RCD-1230H-N6-C34P

Código Interno: PRO37385

Actualizado: 2022-02-16

MEDIDOR/INTERRUPTOR DE CAUDAL POR PRESIÓN DIFERENCIAL RCD
Brand: KOBOLD (Alemania)
Meas. range water [l/min]: 20.0...168
Connection: 1\" NPT
Material Body: Stainless Steal
Supply: 24VDC
Output/Contacts: 4-20 mA, 1 x open collector PNP
Measuring accuracy: 3 % of full scale
Marcador

Differential Pressure Sensor for filters PMP, 0-500mmH2O

Código: PMP-1050E1-D342

Código Interno: PRO37625

Actualizado: 2022-02-16

Differential Pressure Sensor for filters
Brand: Kobold (Alemania)
Model: PMP-1050 E1-D342
Measuring Range 0...500 mm H2O
Analog Output 4-20 mA
Contact 2 Relays, SPDT
Power supply, 24 VDC
Marcador

Pressure Switch for Fuel / Neutral Gases SCH-HCD, 0.2-3mBar

Código: SCH-HCD-6003

Código Interno: PRO38888

Actualizado: 2022-02-16

Model: SCH-HCD-6003
Brand: Kobold
Mounting postition preferable vertical
Version Diff. press. for neutral gases
Protection IP 40
Max. temperature 60 °C
Switching range, 0,2...3 mbar
Options w/o option
Marcador

Differential pressure gauges with bourdon tube MAN-DF16, 7-20Bar

Código: MAN-DF16-B0

Código Interno: PRO39040

Actualizado: 2022-02-16

Model: MAN-DF16-B0
Brand: Kobold
Accuracy class 1,6
Housing St. St.
Connection material St. St.
Connection thread G 1/2 male
Max. medium temp. 100 °C
Contact compatible No
Diff. pressure range 7...20 bar
Indication range 0...40 bar

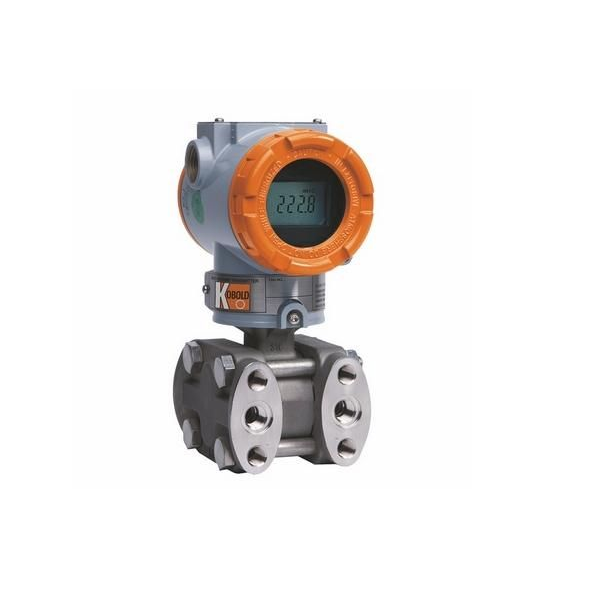

Differential Pressure Transmitter PAD, 18.65mBar-1.865Bar, 0-704mBar

Código: PAD-D-EE-5-S-2-N-S-0-Y(0-704mBar)

Código Interno: PRO40946

Actualizado: 2022-02-16

Differential Pressure Transmitter PAD
Brand: Kobold (Alemania)
Model: PAD-D-EE-5-S-2-N-S-0-Y
Material (Diaphragm/other): st.steel 1.4404/1.4401
Measuring range: 18,65 mbar-1,865 bar
Process connection: 1/4-18 NPT IG (standard)
Options, Special calibration range (0-704 mBar)

Differential Pressure Transmitter PAD, 18.65mBar-1.865Bar, DRM, MS2, Capillary 2 mts, ZUB

Código: PAD-D-EE-5-S-2-N-S-0-N-Y+(DRM-635-A50P15

Código Interno: PRO39745

Actualizado: 2022-02-16

Differential Pressure Transmitter PAD
Model: PAD-D-EE-5-S-2-N-S-0-N-Y
Measuring range: 18,65 mbar-1,865 bar
Options mounting on diaphr. seal
Options special calibration range
Include DRM-635-A50P150
MS2, Capillary stainless steel 1.4571, 2 metros
ZUB-PAD/PAS-L

Differential Pressure Transmitter PAD, 69mBar-6.9Bar, DRM, LS2, Capillary 1 mt

Código: PADDEE6S2NS0N+DRM635A80P150+LS2

Código Interno: PRO40712

Actualizado: 2022-02-16

Differential Pressure Transmitter
Brand: Kobold (Alemania)
Modelo: PAD-D-EE-6-S-2-N-S-0-N+DRM-635-A80P150+LS2
Measuring range, 69 mbar...6,9 bar
Process connection, 1/4-18 NPT IG (standard)
Include DRM-635-A80-P150
Include LS2, Capillary stainless steel 1.4571, 1,0 m
Marcador

Differential Pressure Transmitter PAD 18,65 mbar…1,865 bar (1,865..186,5 KPa)

Código: PAD-H-EE-5-S-2-N-F-0-G

Código Interno: PRO41935

Actualizado: 2021-01-25

Differential Pressure Transmitter PAD
Brand: Kobold (Alemania)
Model: PAD-H EE-5-S-2-N-F-0-G
Marcador

Differential Pressure 1/4-18 NPT IG (standard)

Código: PAD-H-EE-5-S-2-N-S-0-0

Código Interno: PRO41946

Actualizado: 2020-04-30

Differential Pressure Transmitter PAD
Brand: Kobold (Alemania)
Model: PAD-H-EE-5-S-2-N-S-0-0
[PAD-H]
Pressure type High Pressure
Accuracy ± 0,075%..±0,25% of calibr span
measuring principle piezoresistive
Medium temperature -30..+120 °C
Power supply 12-45 VDC (17,5-45 VDC with HART)
[EE]: Material (Diaphragm/other), st.steel 1.4404/1.4401
[5]: Measuring range, 18,65 mbar...1,865 bar (1,865..186,5 KPa)
[S]: Filling Liquid, Silicone
[2]: Process connection, 1/4-18 NPT IG (standard)
[N]: Electr. Connection, 1/2-14 NPT Epoxy-polyester painted Aluminium
[S]: Approvals, Standard (IP 67)
[0]: Manifold Valve, w/o
[0]: Options, w/o
Marcador

Pressure Sensors for HND Display 2 x 4-Digits, LCD

Código: HND-P210

Código Interno: PRO40628

Actualizado: 2020-04-29

Pressure Hand Held Measuring Instruments
Brand: Kobold (Alemania)
Model: HND-P210
Measuring Chanels / Sensor 1 / External
Pressure Units mbar, bar, Pa, kPa, MPa, mmHg, PSI,m
Measuring Range Sensordependant (See Sensor-table)
Resolution Sensordependant (See Sensor-table)
Display 2 x 4-Digits, LCD
Accuracy ±0,1% FS, ±1 Digit
Functional Range Storage Min.-/Max.-Values, Holdfunction, Zero Point Adjustment, Tare-Function, Auto-Off
Additional Functions Storage Peak-Value, Loggerfunction, Min.-/Max.-Alarm, Real-time Clock}
Interface serial*
Power-supply 9 V Battery / optional Mains Adapter
Marcador

Pressure switch 0,4…25 bar

Código: SCH-27-B9-B-N4-4-N

Código Interno: PRO41082

Actualizado: 2020-04-29

Pressure switch
Brand: Kobold (Alemania)
Model: SCH-27-B9-B-N4-4-N
[SCH-27]:
Versión, pressure
Functional principle, mechanical
Repeat accuracy, < 1 % of full setting value
Protection, IP 65
Max. temperature / Max. Pressure, 100°C/pressure acc.to switching range
Material housing/connection st. steel AISI 304/ st. steel AISI 316
Material membran/gasket st. steel AISI 316 /PTFE
[B9]: Switching range, 0,4...25 bar
[B]: Contact, 2 micro switches (standard)
[N4]: Connection, 1/2 - 14 NPT male
[4]: Electr. Connection, ¾ - 14 NPT
[N]: Options, w/o
